Delivering whisper-quiet airflow requires more than placing a fan under a canopy. Every decision — motor type, blade geometry, vent placement, wire sealing, bearing spec — directly affects how the umbrella performs the first time you open it and the hundredth time two seasons later.
This post goes behind the scenes on how an Alizé is actually built. If you have ever wondered why it runs quietly, why it does not lose power over the summer, or why it keeps working after rain and humidity, this is where those answers live.
As we covered in our post on what it takes to design a better outdoor umbrella, getting the engineering right is less about big ideas and more about hundreds of small decisions. This is what those decisions look like up close.

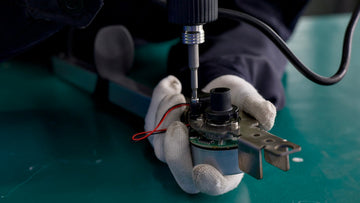

The Motor: Brushless, Hubless, and Built for Long Life
Every Alizé fan runs on a brushless DC motor — specifically a hubless design where the outer ring rotates around a fixed center rather than a central shaft spinning inside a housing.
This matters for two reasons. First, brushless motors have no physical contact between rotor and stator. In a traditional brushed motor, carbon brushes make contact with a commutator to deliver current — and that contact creates friction, heat, wear, and eventually failure. A brushless motor uses electronic commutation instead. There is nothing to wear out in the conventional sense. As Nidec Corporation — the world's largest motor manufacturer — documents in their engineering research, BLDC motors deliver superior controllability, battery compatibility, and whisper-quiet operation because the elimination of brushes removes the primary mechanical noise source.
Second, the hubless configuration opens the center of the fan completely, which is critical for airflow. A traditional hub blocks the center of the blade sweep — exactly where air wants to enter. By removing that obstruction, the hubless design allows clean, unimpeded intake across the full disc area.
Each motor is mounted on heat-dissipating aluminum structures. Under continuous operation on a hot day, motor temperature directly affects bearing life, winding insulation, and long-term efficiency. The aluminum acts as a passive heat sink — pulling thermal energy away from the motor and dissipating it into the surrounding air without any additional components.
The Canopy Vents: Solving a Problem Most Manufacturers Miss
Here is something that does not get discussed enough in outdoor fan design: a fan mounted directly beneath a solid canopy will eventually starve itself of air.
When the fan blades rotate, they accelerate air downward — creating a low-pressure zone on the intake side directly above the blades. In an open environment that zone refills instantly from surrounding air. But beneath a solid canopy, there is no surrounding air. The low-pressure zone above the blades has nowhere to refill from. The result is recirculation — air that has already passed through the fan gets drawn back up and recycled rather than fresh air being pulled in. Airflow drops. Efficiency drops. The fan has to work harder to deliver the same output.
This is what engineers call system effect — a measurable loss in fan performance caused by adverse conditions at the intake. The Air Movement and Control Association International defines it as a pressure loss resulting from fan inlet restrictions that causes the fan to deliver significantly less than its rated airflow. Poorly designed inlet conditions can reduce delivered airflow by 20 to 30 percent or more.
We solved this by engineering vents directly into the canopy above the fan positions. These vents serve a dual purpose that most people would not expect.
The first purpose is supply. The vents create a direct pathway for fresh air to enter the zone above the fans, continuously replenishing the low-pressure intake area and allowing the fans to draw in clean, unrestricted airflow from above rather than recirculating what is already beneath the canopy.
The second purpose is pressure equalization. As we explained in our post on wind tunnel testing and canopy engineering, a solid canopy builds pressure underneath in wind — and that trapped pressure tries to lift the entire structure. The canopy vents release that pressure before it can accumulate, improving wind stability at the same time as they improve fan performance. One design feature solving two separate engineering problems simultaneously.
Blade Geometry: Why the Tips Are Notched
Look closely at an Alizé fan blade and you will see notches cut into the tips. These are not decorative. They are a deliberate acoustic and aerodynamic engineering decision backed by significant research.
When a fan blade tip passes through air, it creates a pressure differential between the high-pressure face and the low-pressure face of the blade. At the tip, where the blade has no more surface to contain that pressure difference, air rolls over the edge and creates a vortex — a small but powerful spinning column of turbulent air that peels off the tip with every rotation. These tip vortices are one of the primary sources of fan noise, producing a characteristic high-frequency whine that is especially difficult to suppress at the motor level.
Notched or serrated blade tips interrupt this process. As peer-reviewed research published in engineering journals on axial fan aeroacoustics demonstrates, introducing notches at the blade edge forces a phase shift in the pressure fluctuations. Instead of one large vortex peeling off the tip at a single frequency, the notches break the vortex into multiple smaller ones that shed at different points and in different directions. The pressure fluctuations spread across a broader frequency range rather than concentrating at a single pitch — and the perceived loudness drops significantly even though the total energy has not changed.
In practical terms, the notched tips let the Alizé run at speeds that deliver meaningful airflow — over 4,000 CFM across four fans — without the tonal noise signature that makes standard fans unpleasant in an outdoor dining or conversation setting.
Bearings: Where Long-Term Silence Actually Lives
Most fan noise that develops over time does not start in the motor or the blades. It starts in the bearings.
Standard consumer fan bearings use sleeve bearings — essentially a metal shaft riding inside a lubricated tube. Sleeve bearings are inexpensive and quiet when new. But lubricant breaks down over time, especially in outdoor environments with heat cycling and UV exposure. As it degrades, the shaft begins to wobble microscopically. That wobble creates vibration, which creates noise, which gets worse every season until the bearing fails entirely.
Alizé uses oversized stainless steel ball bearings. Ball bearings replace sliding contact with rolling contact — reducing friction, heat generation, and wear simultaneously. The stainless steel resists corrosion from humidity, condensation, and rain exposure. The oversized specification means each bearing runs well below its load rating, extending service life and maintaining precision alignment over years of use.
The direct relationship between bearing precision and noise is well-documented in academic research on brushless motor acoustics for fan applications — vibration from electromagnetic forces in the motor transmits directly through the bearing into the frame, and bearing quality is the primary variable determining how much of that vibration becomes audible noise. Oversizing the bearing reduces the transmission of those forces. The fan stays quiet not just when new, but after hundreds of hours of use.
Sealed Wiring: Outdoor-Grade From the First Connection
Outdoor electrical failures almost never happen at the motor or the switch. They happen at the connections — the points where wires join, where the elements find a path in, and where corrosion begins.
Every wire connection inside an Alizé uses sealed connectors rated for outdoor environmental exposure. The international standard for this is the IP rating system — a two-digit code defined by IEC 60529 that classifies protection against solid particles and liquids. As Amphenol LTW — a leading industrial connector manufacturer — explains in their technical documentation, an IP67-rated connector is completely dust-tight and can withstand temporary submersion in water up to one meter deep for 30 minutes. IP68 extends that to continuous submersion beyond one meter, with depth and duration specified by the manufacturer.
The sealed connectors in the Alizé wiring harness prevent moisture from tracking into the connection points along the wire path — a failure mode that standard connectors cannot prevent even in light rain. Silicone O-ring seals compress against mating surfaces to block every entry point. Housing materials resist UV degradation and thermal cycling. The connections that leave the factory are the connections that remain sealed after two years of outdoor use.
Beyond sealing, every unit is assembled with torqued fasteners on all structural and electrical connections. Torque specifications matter because both under-tightened and over-tightened connections fail — one by loosening from vibration, the other by cracking sealing materials or deforming contact surfaces. The torque values are not estimates. They are specified and verified at assembly.
All wiring is grounded. Outdoors, ground paths are the difference between a unit that handles a surge or fault safely and one that does not.
Quality Control: The Run-In Test
Before any Alizé unit is packaged, it runs.
Every assembled umbrella undergoes a full load run-in test that simulates real operating conditions — all fans running at speed, under load, for a defined period. This is the only way to catch the failure modes that do not appear in visual inspection or static electrical testing.
Bearing misalignment shows up as vibration or noise during rotation. Balance issues show up as oscillation at speed. Wiring faults show up as current anomalies. A connection that appears solid at rest may arc or drop voltage under load. The run-in test finds all of these before the unit reaches you.
The result is a fan that is not just built to specification — it is proven to operate to specification before it leaves production.
Why All of This Matters for You
None of the engineering described here is visible from the outside. You will not see the bearing grade, the connector rating, or the canopy vent geometry when the umbrella is open.
But you will notice it in every hour of use. In the quiet that lets you have a conversation under the canopy. In the consistent airflow that does not drop off over a long afternoon. In the unit that opens exactly the same way in July as it did when you first unpacked it, and performs the same way the following summer too.
That is what engineering for the long term actually looks like — not features on a spec sheet, but decisions made at every level of construction that add up to a product that earns its place in your outdoor space.
